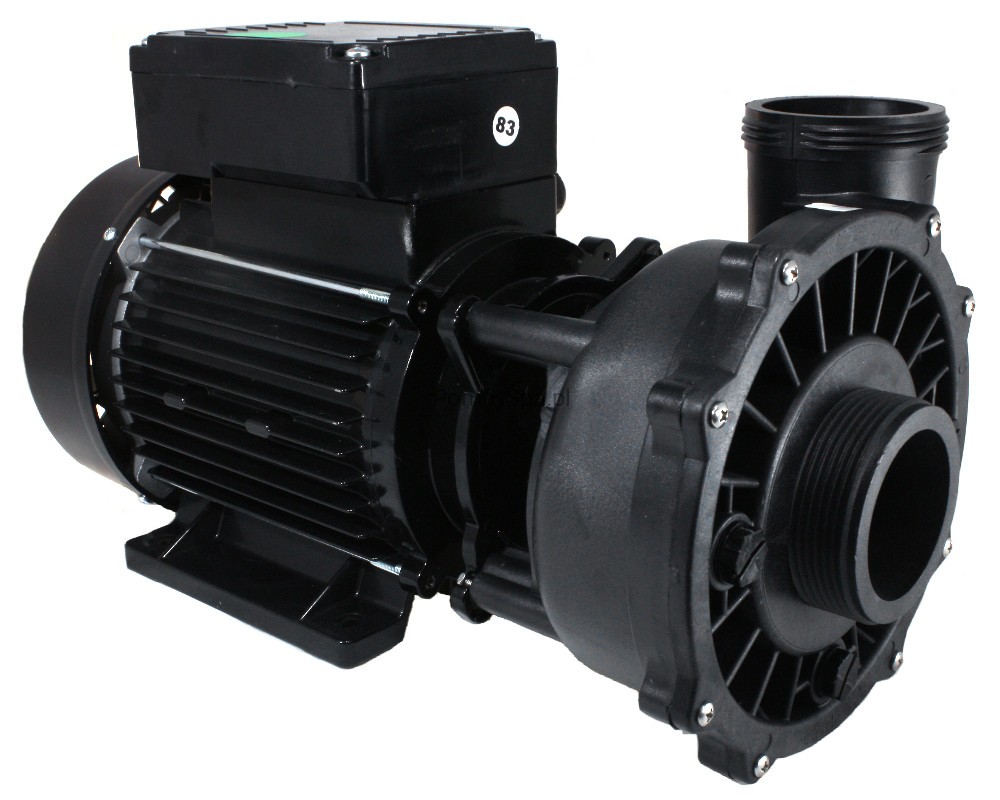

The Waterway Executive Euro pump is used by many major spa brands. This pump is a single-speed pump, used to run massage jets. It has an EMG Italian-made water-resistant motor and a high-performance wet end.

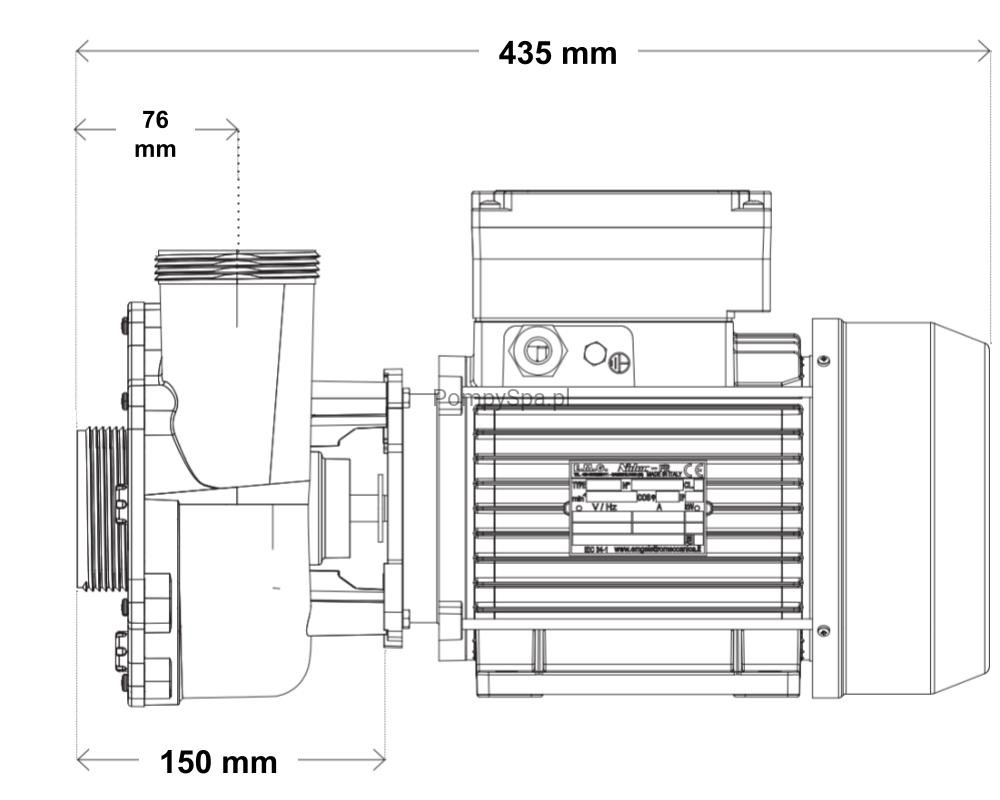

Length: 435 mm

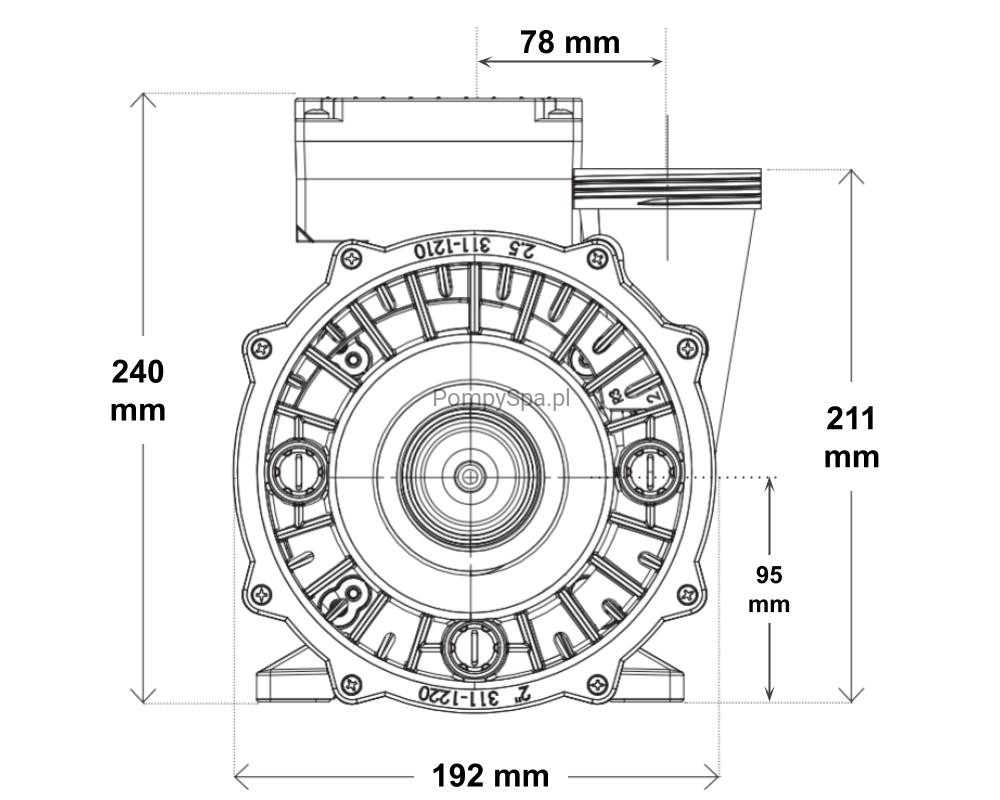

Width: 210 mm
Height: 240 mm
This Waterway Executive Euro pump is available in three power ratings :
- Power 2 kW / Current 9 A
- Power 2,2 kW / Current 10,2 A
- Power 3 kW / Current 12,4 A

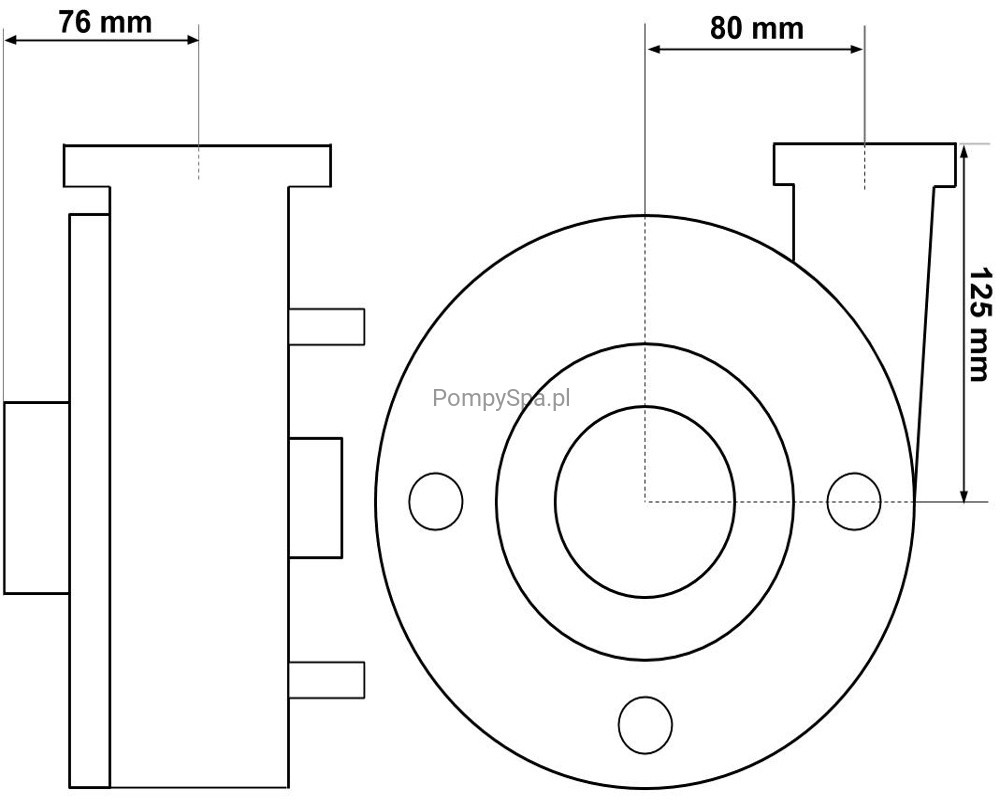

Outflow: male threaded with a 78 mm outside diameter
Intake: male threaded, either with a 78 mm or a 94 mm outside diameter
This pump is normally connected to 2-inch pipe.
Cables and plugs
The Waterway Executive pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. You will find a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
Just in case you need to replace it one day, it's a 25µF for the 2 HP version and a 40µF for the 3 HP version.
1 year Tubs Parts warranty
Waterway part numbers
2 kW / 78 mm : PF-20-1N22X, 3R10850-0D
2 kW / 94 mm : PF-20-1N22X25
2,5 kW / 78 mm : PF-25-1N22X
2,5 kW / 94 mm : PF-25-1N22X25
3 kW / 78 mm : PF-30-1N22X, 3R11250-0D, PF-30-1N22C4
3 kW / 94 mm : PF-30-1N22X25
Wet end orientation
Exit to left
Exit to right
