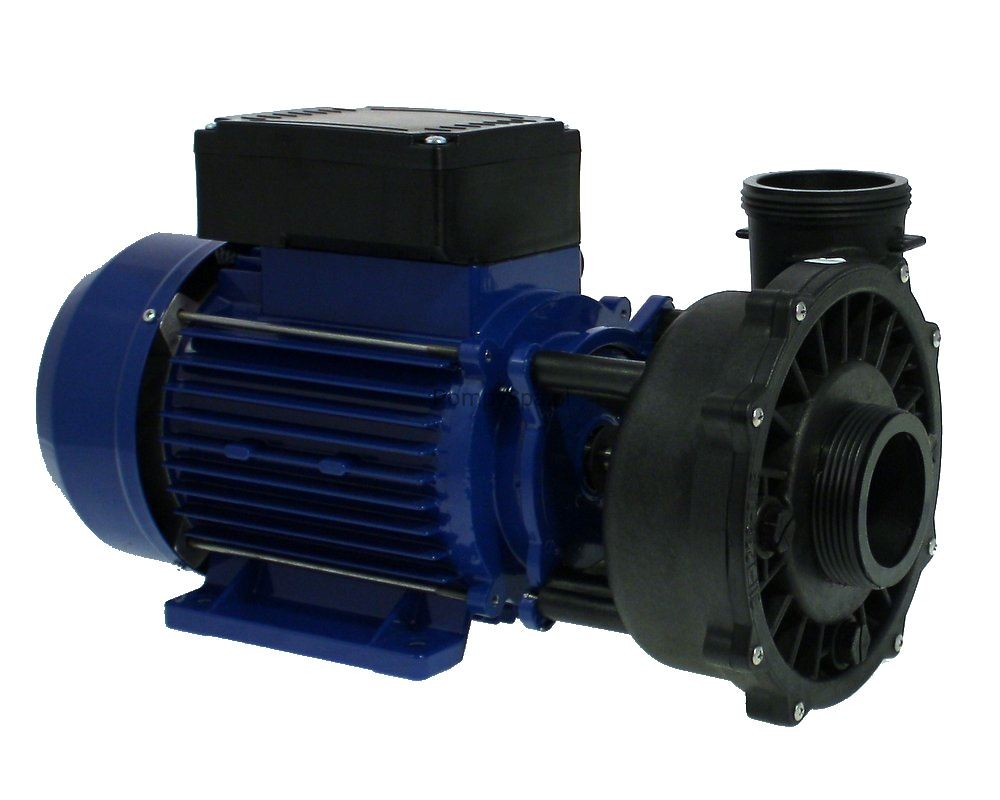

Waterway Futura 3
The clever, 3-speed Waterway Futura 3 massage pump is controlled by multiple presses of the ON/OFF button from the spa control panel. Each time you turn the pump off and then on again it will switch to the next speed.
The Futura 3 is equipped with an EMG Italian-made water-resistant motor and the same high-performance wet end as the Waterway Executive.

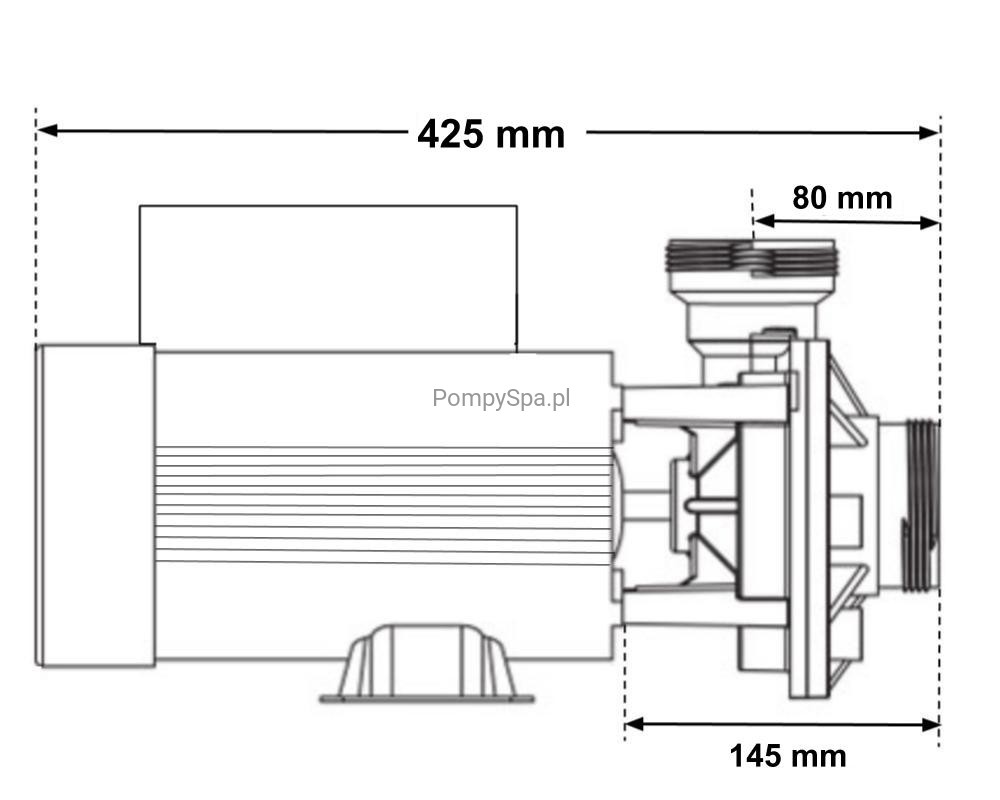

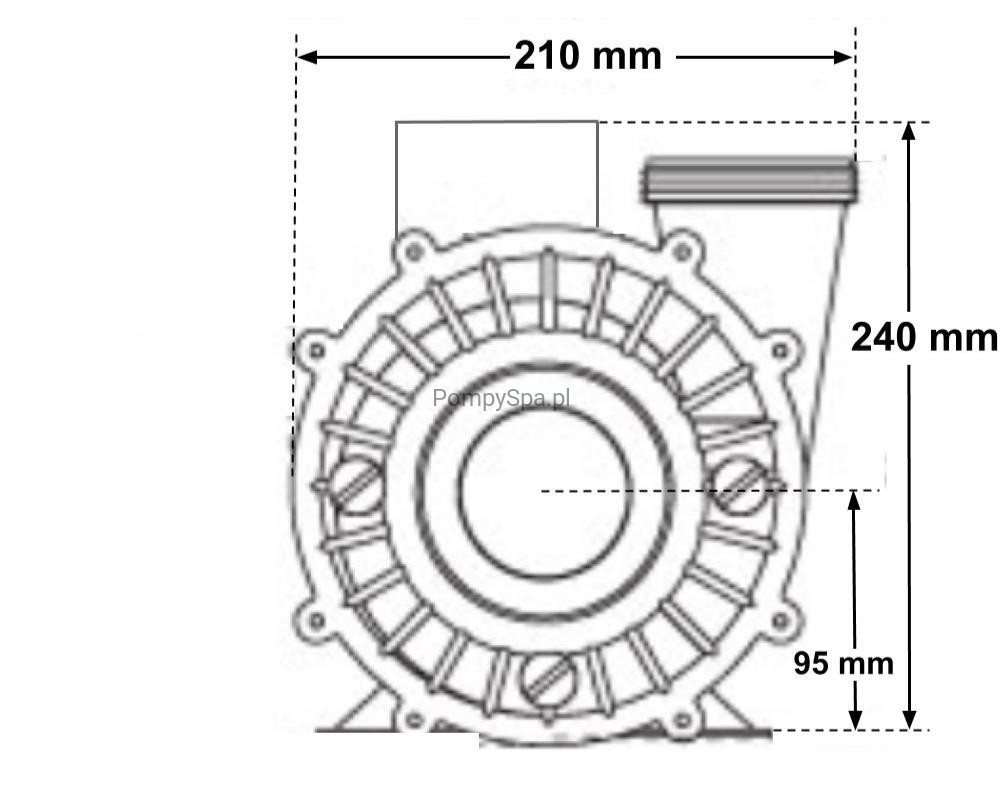

Dimensions (without pump unions)
Length: 425 mm
Width: 210 mm
Height: 240 mm

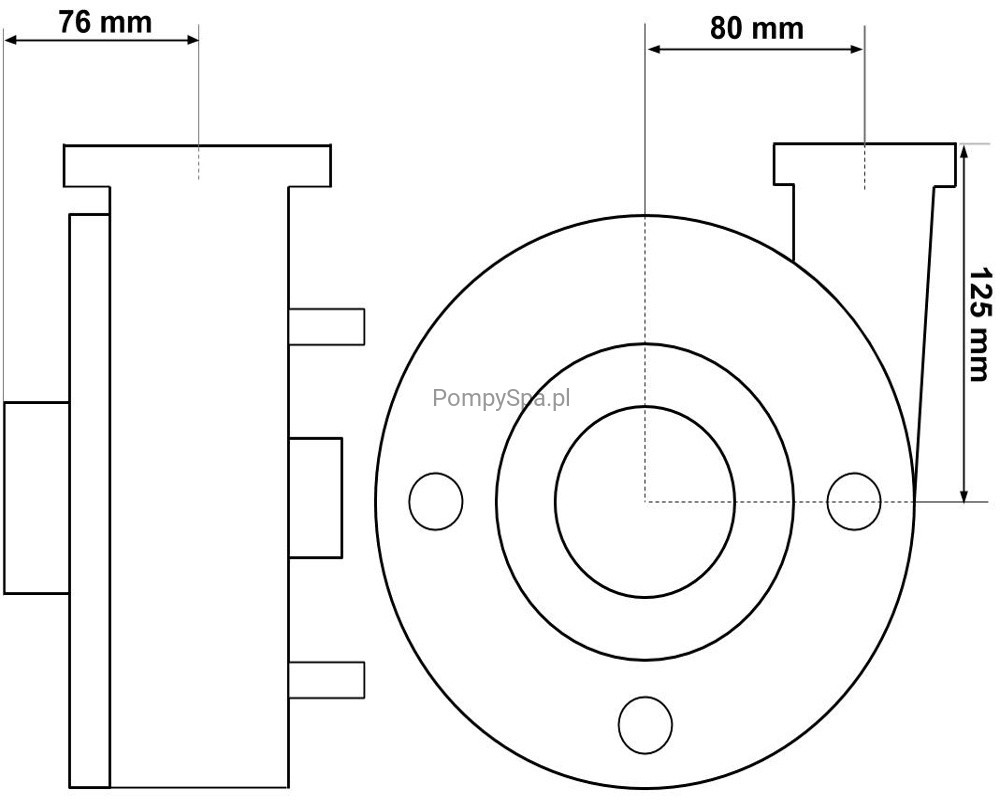

Outflow : male thread with a 78 mm outside diameter.
Intake : male thread with an outside diameter of either 78 mm or 94 mm (choose which you need at the bottom of the page).
This pump is usually connected to 2-inch pipe.
Power : 0.32 kW / 1.0 kW / 1.55 kW
Current : 2.34 A / 4.7 A / 7.9 A

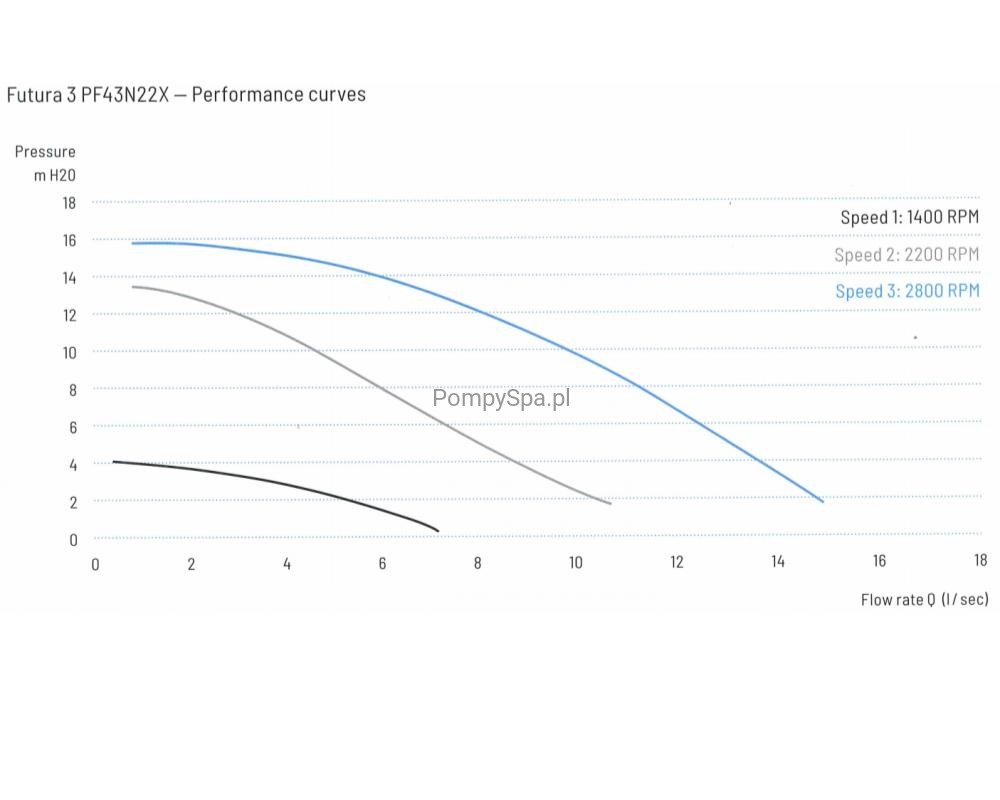

Maximum flow rate : 960 litres/minute
Cable and plug
The Waterway Futura 3 pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. You will find a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
You can also choose to have the pump pre-wired by our team with an AMP plug, a mini J&J plug or an in.link plug (220 cm long).
1 year Tubs Parts warranty
Waterway : PF43N22XAE
Wet end orientation
Exit to left
Exit to right
