Waterway Hi-Flo 2 biegowa

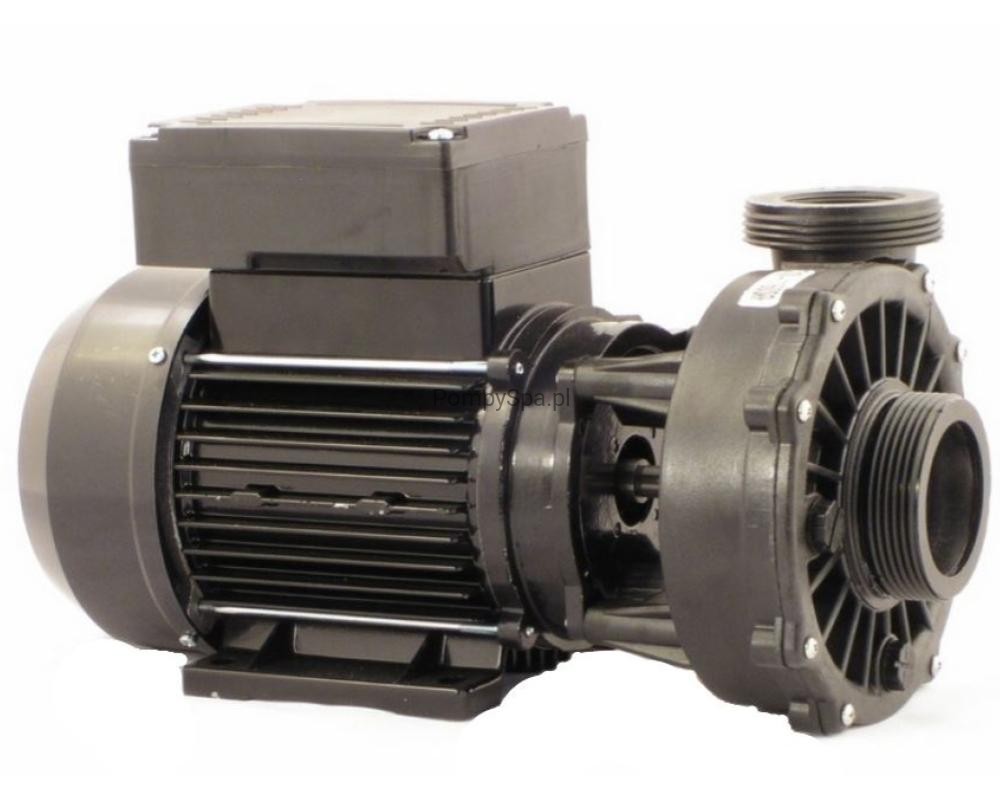

The Waterway Hi-Flo pump is compact, reliable and relatively quiet considering their power, and they are used by many major spa brands. This model is a two-speed pump, used for circulation and heating on low speed, and for massage jets on high speed.
The Hi-Flo pump has an EMG Italian-made water-resistant motor and a high-performance wet end.
We also offer a single-speed version of this pump.

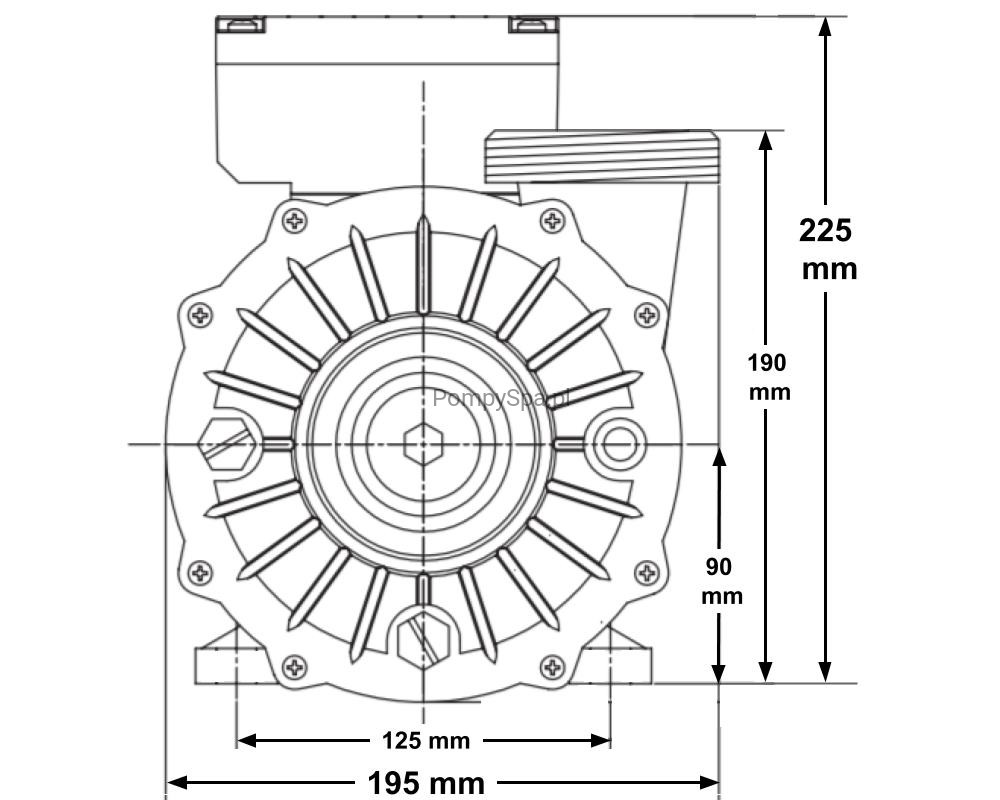

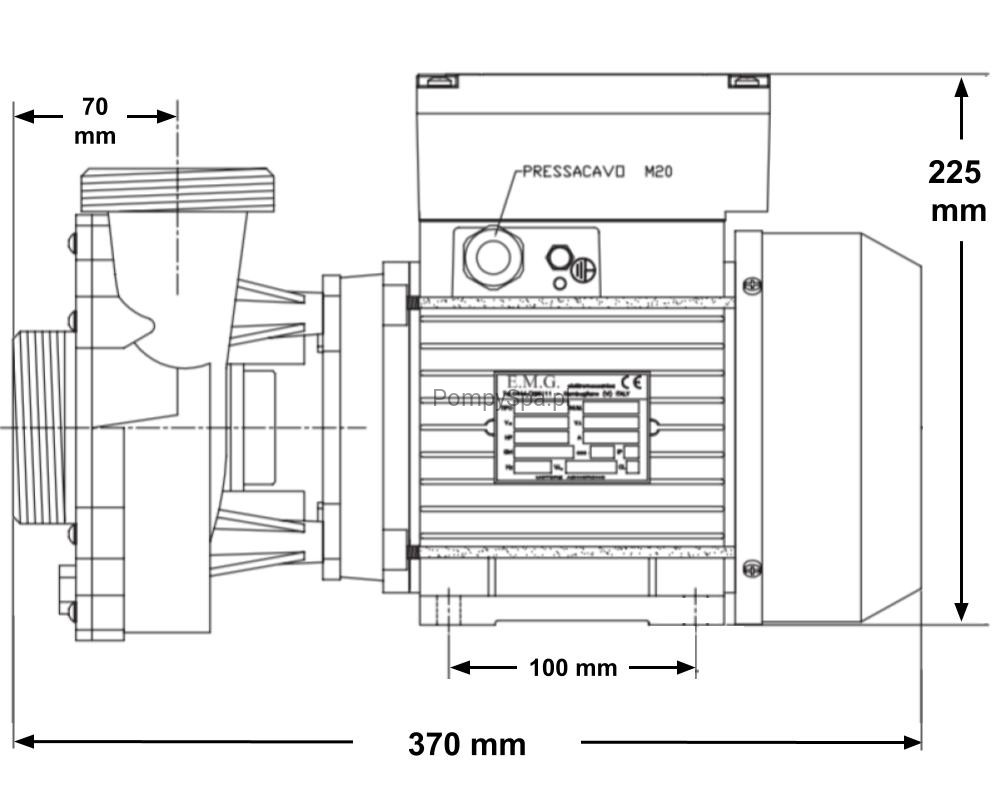

Dimensions (without pump unions)
Length: 370 mm
Height: 225 mm
Width: 190 mm
Power high speed : 1.5 kW (2.0 HP)
Power low speed : 0,45 kW
Current high speed : 6,8 A
Current low speed : 2,2 A
Note that many Waterway pumps have a sticker on the wet end that indicates a higher power rating (often 3.0 HP in the case of this pump). Ignore it! Waterway uses the same wet end in conjunction with a more powerful motor for the North American market, and the sticker corresponds to the American version.

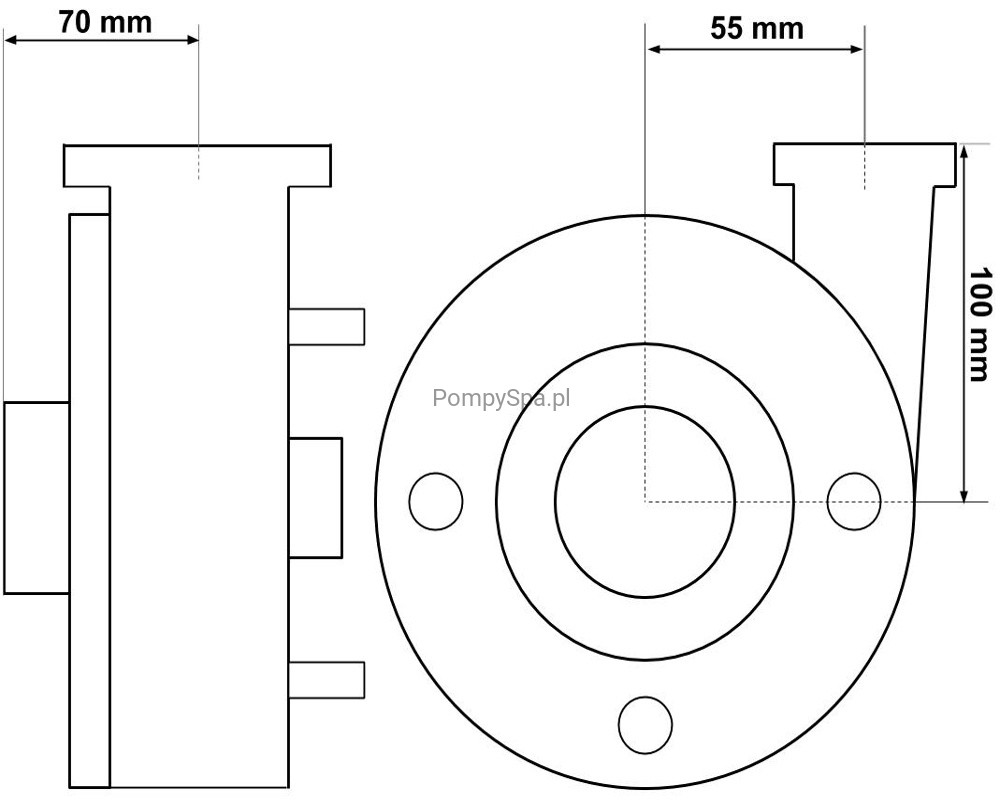

Male threaded with an assymetric 2-inch MBT thread (outside diameter of 78 mm).
The Waterway Hi-Flo pump is normally connected to a 2-inch pipe.
Cable and plug
The Waterway Hi-Flo pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. You will find a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
You can also choose to have the pump pre-wired by our team with an AMP plug, a mini J&J plug or an in.link plug (100 cm long).
Just in case you need to replace one: 16µF for the low speed and 30µF for the high speed.
1 year Tubs Parts warranty
Wet end orientation
Exit to left
Exit to right
